Fontaine Fifth Wheel Parts Kits
Rebuild | Jaw/Wedge Lock | Spring | Adjustment Rod Bolt
Secondary Lock | Pull Handle | Bumper/Trigger | Timer
Air Cylinder | Operating Handle | Clean Connect Plate
Pin and Bushing | TOP

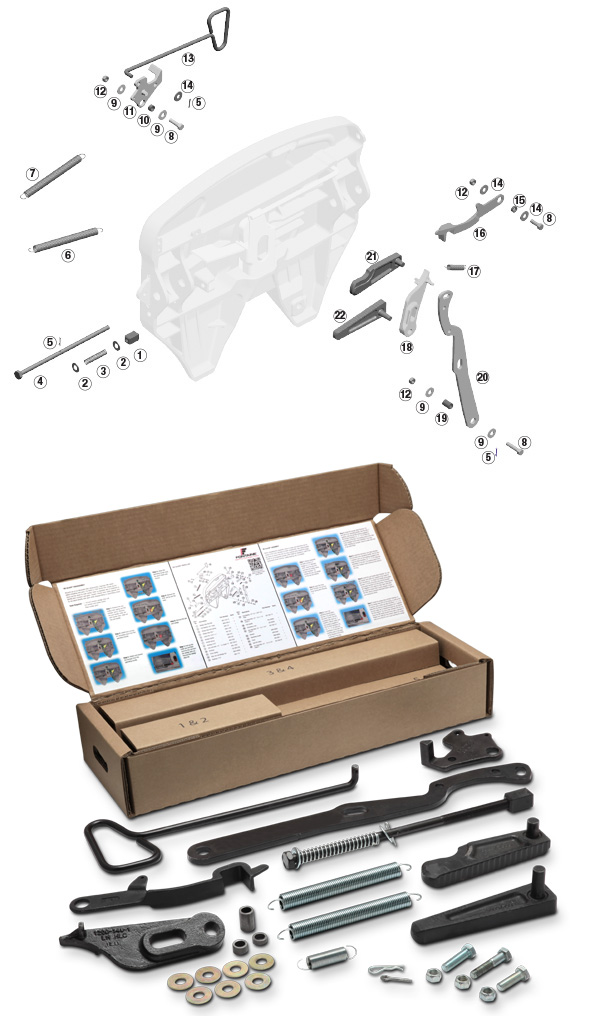

Rebuild Kit for No-Slack®
6000 (SLTPL6000), 7000 (SLTPL7000),
7000 Clean Connect (SLTPL7000CC),
NT (SLTPLUNT)
Part number:
KIT-RX-67NTL
Major rebuild kit for left side (driver) handle release NT/6000/7000/
7000CC.
Kit does not include bracket pins, bushings or Clean Connect plate kits.
6000 (SRTPL6000), 7000 (SRTPL7000),
7000 Clean Connect (SRTPL7000CC),
NT (SRTPLUNT)
Part number:
KIT-RX-67NTR
Major rebuild kit for right side (passenger) handle release NT/6000/7000/
7000CC.
Kit does not include bracket pins, bushings or Clean Connect plate kits.
Rebuild | Jaw/Wedge Lock | Spring | Adjustment Rod Bolt
Secondary Lock | Pull Handle | Bumper/Trigger | Timer
Air Cylinder | Operating Handle | Clean Connect Plate
Pin and Bushing | TOP

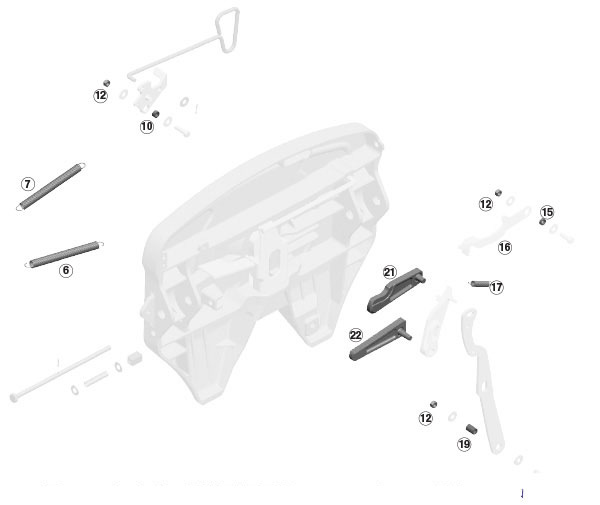

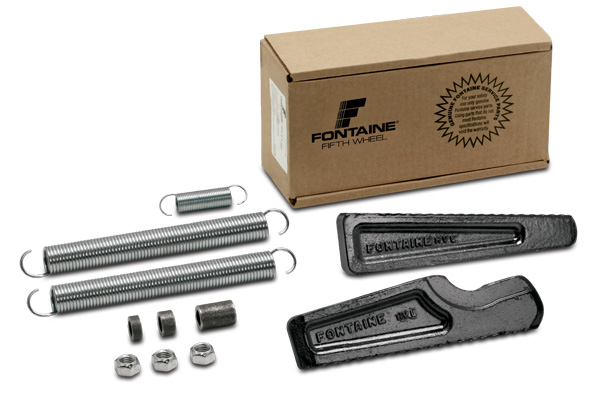

Jaw/Wedge Lock Kit for:
6000 (SLTPL6000), 7000 (SLTPL7000),
7000 Clean Connect (SLTPL7000CC),
H7 (SLTPLH7), NT (SLTPLUNT)
Part number (Left Driver Side Handle):
KIT-RPR-6000L
Part number (Right Passenger Side Handle):
KIT-RPR-6000R
| Item | Description | Quantity |
 |
Bumper spring | 1 |
 |
Handle spring | 1 |
 |
Timer spring | 1 |
 |
Step jaw | 1 |
 |
Wedge | 1 |
 |
Bushing, 7/16" | 1 |
 |
Bushing, 5/16" | 1 |
 |
Bushing, 1 1/4" | 1 |
 |
Hex lock nut, 1/2" - 13 | 1 |
Rebuild | Jaw/Wedge Lock | Spring | Adjustment Rod Bolt
Secondary Lock | Pull Handle | Bumper/Trigger | Timer
Air Cylinder | Operating Handle | Clean Connect Plate
Pin and Bushing | TOP

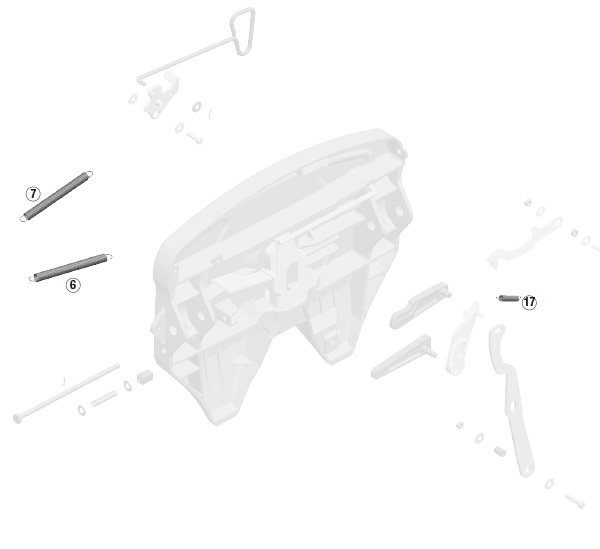

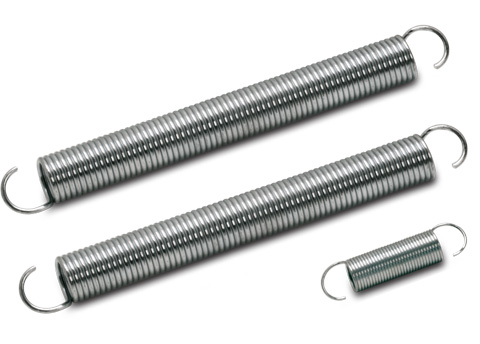

Spring Kit for:
6000 (SLTPL6000), 7000 (SLTPL7000),
7000 Clean Connect (SLTPL7000CC),
H7 (SLTPLH7), NT (SLTPLUNT)
Part number:
KIT-SPRING
| Item | Description | Quantity |
|
Bumper spring | 1 |
|
Handle spring | 1 |
|
Timer spring | 1 |
Rebuild | Jaw/Wedge Lock | Spring | Adjustment Rod Bolt
Secondary Lock | Pull Handle | Bumper/Trigger | Timer
Air Cylinder | Operating Handle | Clean Connect Plate
Pin and Bushing | TOP

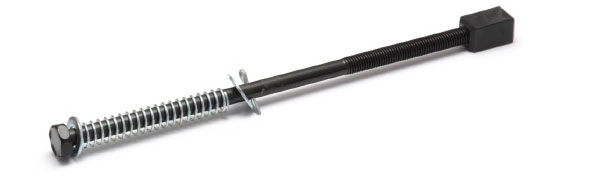

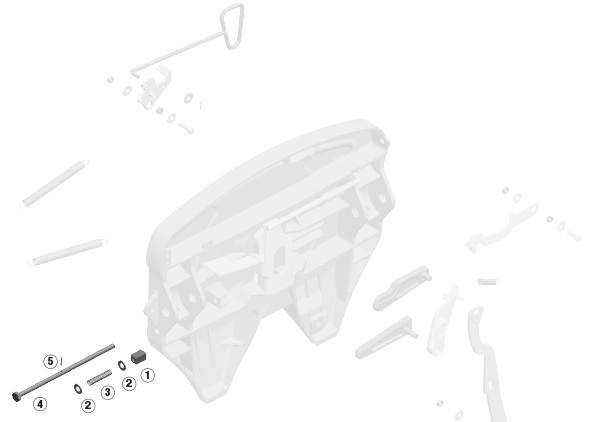

Adjustment Rod Bolt for:
6000 (SLTPL6000), 7000 (SLTPL7000),
7000 Clean Connect (SLTPL7000CC),
H7 (SLTPLH7), NT (SLTPLUNT)
H5092, X5092
Part number:
KIT-ROD-1108
| Item | Description | Quantity |
 |
Wedge-stop rod nut | 1 |
 |
Flat washer, 5/8" I.D. | 2 |
 |
Wedge-stop rod spring | 1 |
 |
Wedge-stop rod | 1 |
 |
Cotter pin, 3/16" x 1" | 1 |
Rebuild | Jaw/Wedge Lock | Spring | Adjustment Rod Bolt
Secondary Lock | Pull Handle | Bumper/Trigger | Timer
Air Cylinder | Operating Handle | Clean Connect Plate
Pin and Bushing | TOP

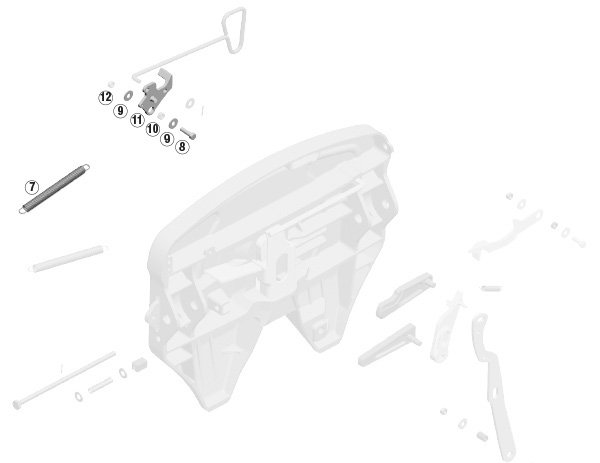

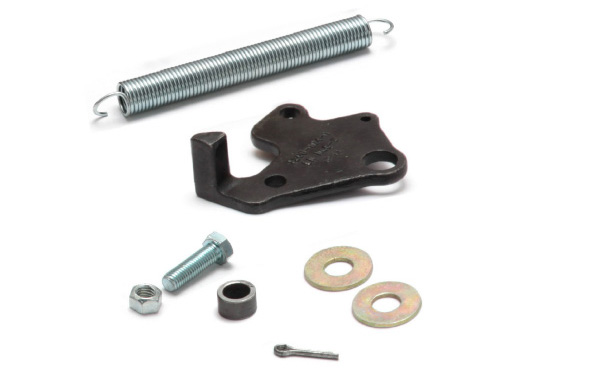

Secondary Lock Kit for:
6000 (SLTPL6000), 7000 (SLTPL7000),
7000 Clean Connect (SLTPL7000CC),
H7 (SLTPLH7), NT (SLTPLUNT)
Part number (Left Driver Side Handle):
KIT-LAT-6000L
| Item | Description | Quantity |
|
Handle spring | 1 |
 |
Hex head bolt, 1/2" - 13 | 1 |
 |
Flat washer, 1/2" I.D. | 2 |
|
Bushing, 7/16" | 1 |
 |
Secondary lock | 1 |
|
Hex lock nut, 1/2" - 13 | 1 |
|
Cotter pin, 3/16" x 1" | 1 |
Rebuild | Jaw/Wedge Lock | Spring | Adjustment Rod Bolt
Secondary Lock | Pull Handle | Bumper/Trigger | Timer
Air Cylinder | Operating Handle | Clean Connect Plate
Pin and Bushing | TOP

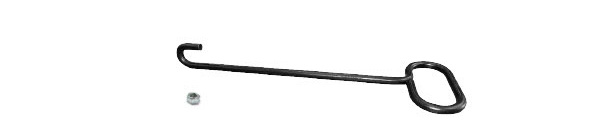

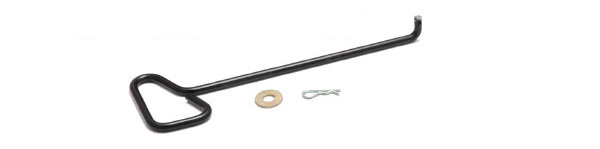

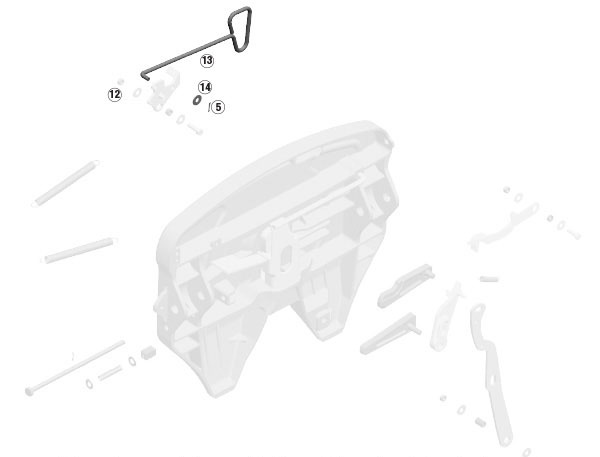

Pull Handle Kit for:
Pull Handle Kit for:
6000 (SLTPL6000), 7000 (SLTPL7000),
7000 Clean Connect (SLTPL7000CC),
H7 (SLTPLH7), NT (SLTPLUNT)
Designed for all No-Slack® Models except Heavy Duty H7
Part number (Left Driver Side Handle):
KIT-PUL-6000L
Part number (Right Passenger Side Handle):
KIT-PUL-6000R
Designed for Heavy Duty No-Slack® H7
Part number (Left Driver Side Handle):
KITPULH7
| KIT-PUL-6000L or R6000/7000/7000CC/NT | ||
| Item | Description | Quantity |
 |
Pull handle | 1 |
 |
Flat washer, 1/2" I.D. | 1 |
|
Cotter pin, 3/16" x 1" | 2 |
| KITPULH7 H7 |
||
| Item | Description | Quantity |
|
Heavy Duty Pull Handle | 1 |
|
Hex lock nut, 1/2" - 13 | 1 |
Rebuild | Jaw/Wedge Lock | Spring | Adjustment Rod Bolt
Secondary Lock | Pull Handle | Bumper/Trigger | Timer
Air Cylinder | Operating Handle | Clean Connect Plate
Pin and Bushing | TOP

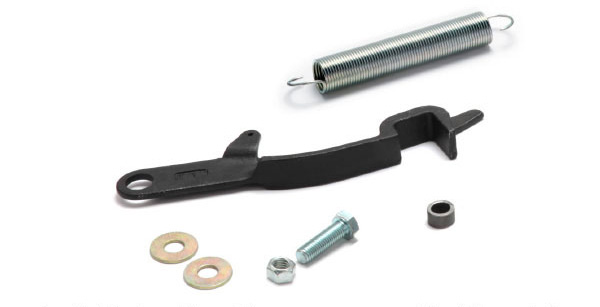

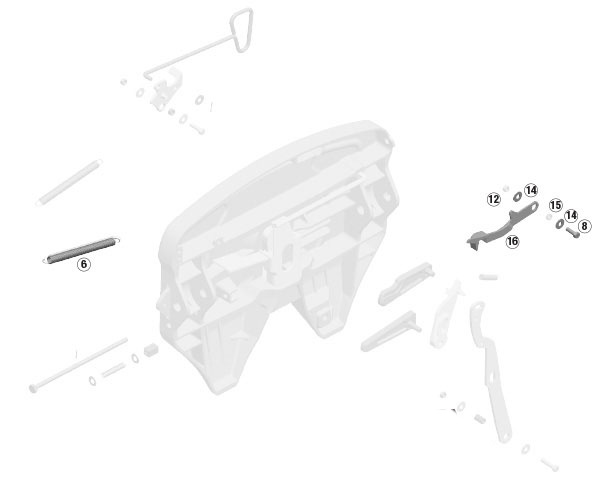

Bumper/Trigger Kit for:
6000 (SLTPL6000), 7000 (SLTPL7000),
7000 Clean Connect (SLTPL7000CC),
H7 (SLTPLH7), NT (SLTPLUNT)
Part number (Left Driver Side Handle):
KIT-BPR-6000L
| Item | Description | Quantity |
|
Hex lock nut, 1/2" - 13 | 1 |
|
Flat washer, 1/2" I.D. | 2 |
|
Bushing | 2 |
|
Hex head bolt, 1/2" - 13 | 1 |
 |
Bumper | 1 |
|
Bumper spring | 1 |
Rebuild | Jaw/Wedge Lock | Spring | Adjustment Rod Bolt
Secondary Lock | Pull Handle | Bumper/Trigger | Timer
Air Cylinder | Operating Handle | Clean Connect Plate
Pin and Bushing | TOP

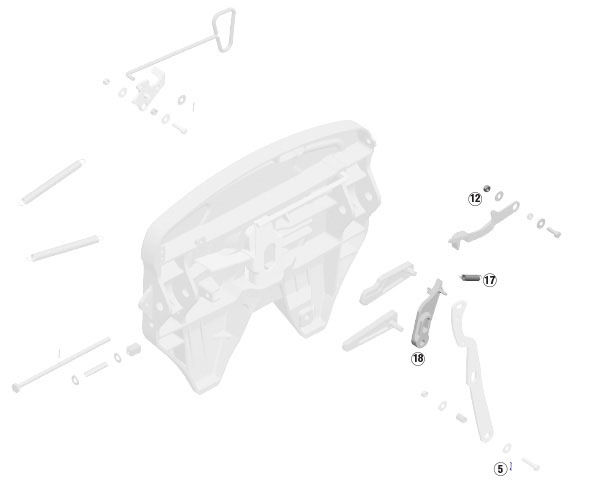

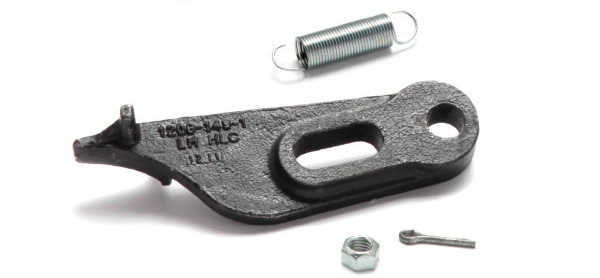

Timer Kit for:
6000 (SLTPL6000), 7000 (SLTPL7000),
7000 Clean Connect (SLTPL7000CC),
H7 (SLTPLH7), NT (SLTPLUNT)
Part number (Left Driver Side Handle):
KIT-TMR-6000L
| Item | Description | Quantity |
|
Timer spring | 1 |
 |
Timer | 1 |
|
Hex lock nut, 1/2" - 13 | 1 |
|
Hair pin cotter | 1 |
Rebuild | Jaw/Wedge Lock | Spring | Adjustment Rod Bolt
Secondary Lock | Pull Handle | Bumper/Trigger | Timer
Air Cylinder | Operating Handle | Clean Connect Plate
Pin and Bushing | TOP

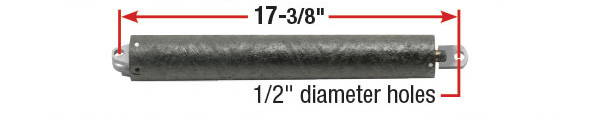

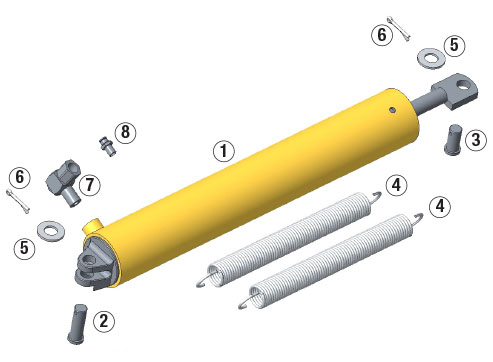

Air Cylinder Kit for:
6000 (SLTPL6000), 7000 (SLTPL7000),
7000 Clean Connect (SLTPL7000CC)
Part number (Left Driver Side Handle):
KIT-AA-6000L
| Item | Description | Quantity |
|
Air cylinder | 1 |
|
Clevis pin long | 1 |
|
Clevis pin short | 1 |
|
Springs | 2 |
|
Flat washer (1/2") | 2 |
|
Cotter pin (5/32") | 2 |
|
Exhaust Valve | 1 |
|
Quick Disconnect Valve | 1 |
Rebuild | Jaw/Wedge Lock | Spring | Adjustment Rod Bolt
Secondary Lock | Pull Handle | Bumper/Trigger | Timer
Air Cylinder | Operating Handle | Clean Connect Plate
Pin and Bushing | TOP

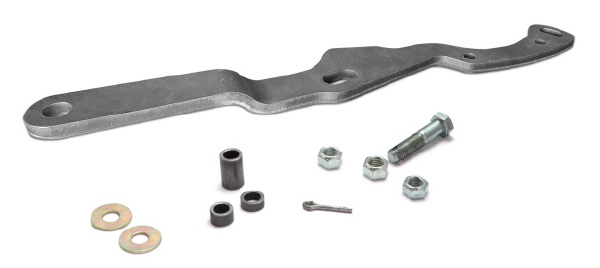

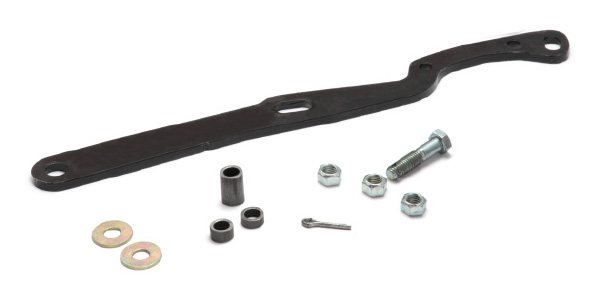

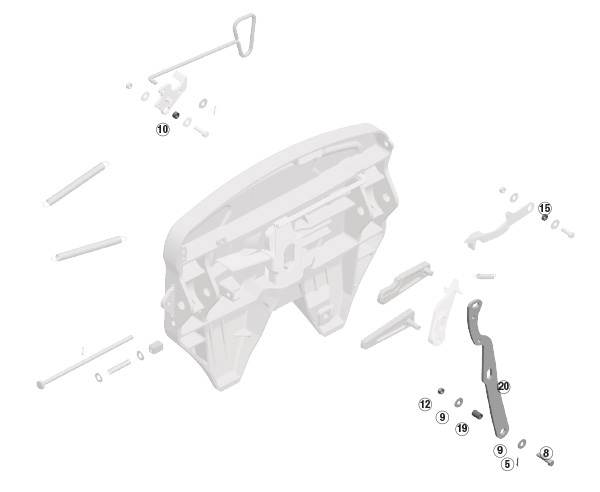

Operating Handle Kit for:
6000 (SLTPL6000), 7000 (SLTPL7000),
7000 Clean Connect (SLTPL7000CC),
H7 (SLTPLH7), NT (SLTPLUNT)
Designed for all No-Slack® Models except Heavy Duty H7 Part number:
KIT-OPR-6000
Designed for Heavy Duty No-Slack® H7
KITOPRH7
| KIT-OPR-60006000/7000/7000CC/NT | ||
| Item | Description | Quantity |
|
Bushing, 7/16" | 1 |
|
Bushing, 5/16" | 1 |
|
Bushing, 1 1/4" | 1 |
|
Hex lock nut, 1/2" - 13 | 3 |
|
Flat washer, 1/2" I.D. | 2 |
|
Hex head bolt, 1/2" - 13 | 1 |
 |
Operating handle | 1 |
|
Hair pin cotter | 1 |
| KITOPRH7 H7 |
||
| Item | Description | Quantity |
|
Bushing, 7/16" | 1 |
|
Bushing, 5/16" | 1 |
|
Bushing, 1 1/4" | 1 |
|
Hex lock nut, 1/2" - 13 | 3 |
|
Flat washer, 1/2" I.D. | 2 |
|
Hex head bolt, 1/2" - 13 | 1 |
|
Operating handle | 1 |
|
Hair pin cotter | 1 |
Rebuild | Jaw/Wedge Lock | Spring | Adjustment Rod Bolt
Secondary Lock | Pull Handle | Bumper/Trigger | Timer
Air Cylinder | Operating Handle | Clean Connect Plate
Pin and Bushing | TOP

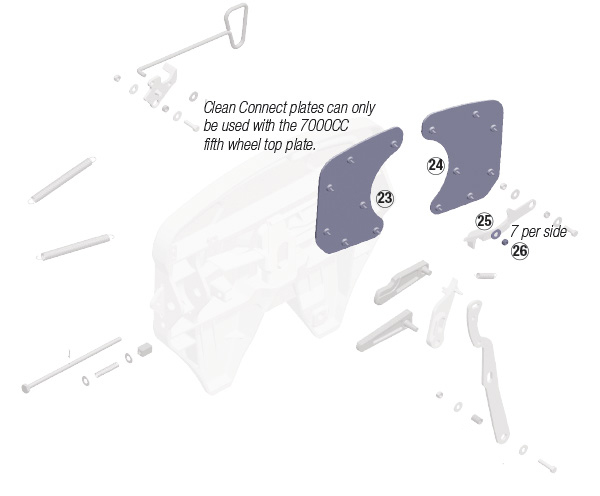

Clean Connect Plate Kit for:
7000 Clean Connect (SLTPL7000CC)
Part number (Left Plate):
CCR-PLATES-L
Part number (Right Plate):
CCR-PLATES-R
| CCR-PLATES-R 7000CC |
||
| Item | Description | Quantity |
 |
Right CC plate | 1 |
 |
Flat washer | 7 |
 |
Hex lock nut | 7 |
| CCR-PLATES-L 7000CC |
||
| Item | Description | Quantity |
 |
Left CC plate | 1 |
|
Flat washer | 7 |
|
Hex lock nut | 7 |
Rebuild | Jaw/Wedge Lock | Spring | Adjustment Rod Bolt
Secondary Lock | Pull Handle | Bumper/Trigger | Timer
Air Cylinder | Operating Handle | Clean Connect Plate
Pin and Bushing | TOP

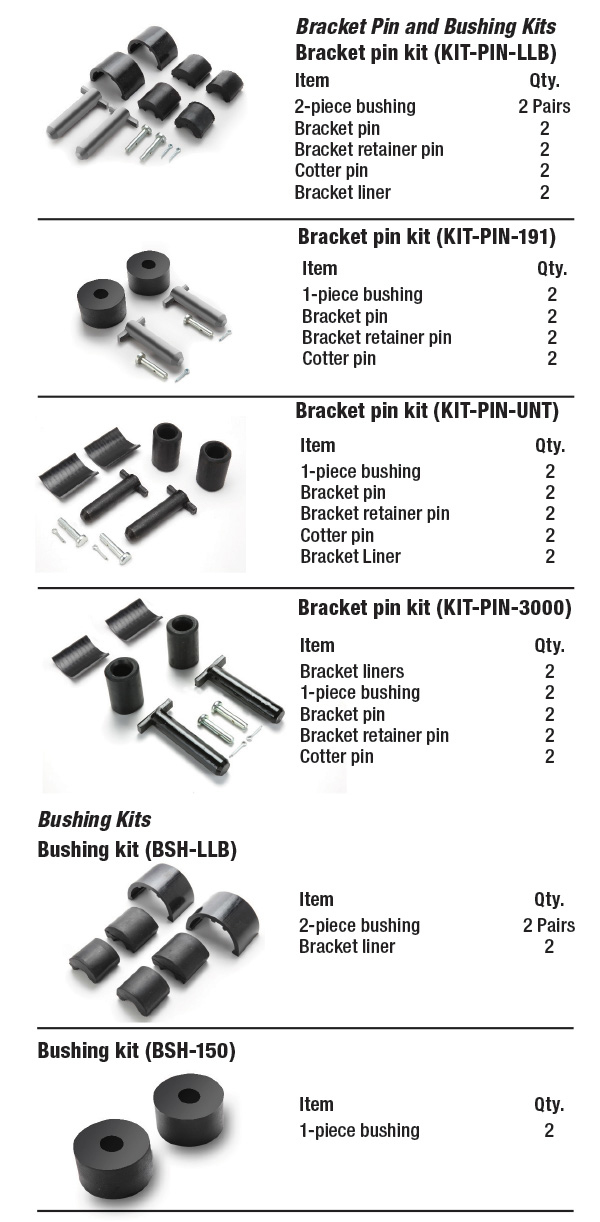

Pin and Bushing Kit for:
| Sliding Brackets | |||
| Top Plate Mount | Top Plate | Bracket Pin Kit | Bushing Kit |
| ATB | 6000, 7000, 7000CC | KIT-PIN-LLB | BSH-LLB |
| AWB | 7000, H5092, H7 | KIT-PIN-191 | BSH-150 |
| AWB Blocked | BLAWB 7000, H5092, H7 | KIT-PIN-191 | BSH-150 |
| AWX | H5092, H7 | – | BSH-150 |
| LWB | 6000, 7000, 7000CC | KIT-PIN-LLB | BSH-LLB |
| LWO | NT, 3000 | KIT-PIN-UNT* | – |
| MTB | 6000, 7000, 7000CC | KIT-PIN-LLB | BSH-LLB |
| MWS | H5092, H7 | KIT-PIN-191 | BSH-150 |
| NWB | 6000 | KIT-PIN-LLB | BSH-LLB |
| ASB | NT, 3000 | KIT-PIN-3000 | – |
| Fixed Mount/Plate Mount | |||
| Top Plate Mount | Top Plate | Bracket Pin Kit | Bushing Kit |
| APB | NT, 3000 | KIT-PIN-UNT* | – |
| BSL | 6000, 7000, 7000CC | KIT-PIN-LLB | BSH-LLB |
| BSM | 6000, 7000, 7000CC | KIT-PIN-LLB | BSH-LLB |
| FMA | 6000, 7000, 7000CC | KIT-PIN-191 | BSH-150 |
| FMA D3 | 6000, 7000, 7000CC | KIT-PIN-191 | BSH-150 |
| PMA | 6000, 7000, 7000CC | KIT-PIN-LLB | BSH-LLB |
| PML | 6000, 7000, 7000CC | KIT-PIN-LLB | BSH-LLB |
| PSA | H5092, H7 | KIT-PIN-191 | BSH-150 |
| PS5 | H5092, H7 | KIT-PIN-191 | BSH-150 |
| PS5 Blocked (BLPS5) | H5092, H7 | KIT-PIN-191 | BSH-150 |
| SMB | NT, 3000 | KIT-PIN-UNT* | – |
| XPSA | X5092 | – | BSH-150 |
*If 3000 Series top plate on the bracket or slide, use KIT-PIN-3000.
For H5092 or X5092 replacement kits click here.
For Auto Hauler CD700 Custom duty replacement parts click here.
For 3000 Series replacment parts click here.
For air slide bracket repair kits click here.
